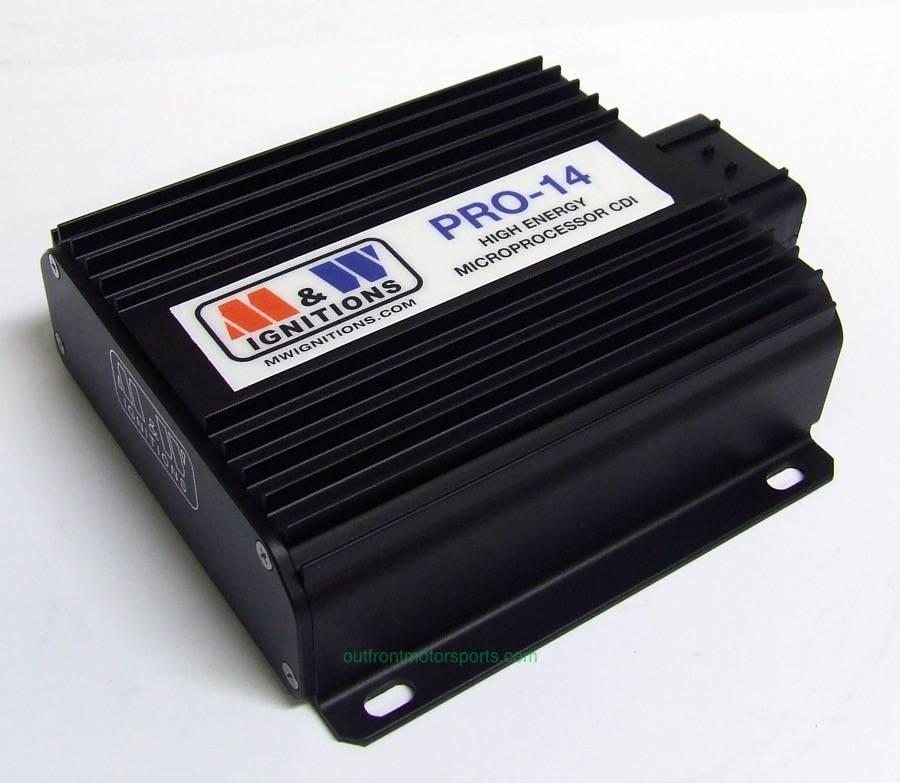

M&W Pro-14r Rotary CDI Ignition Box

M&W produces the finest quality CDI units on the market. With application ranging from Formula 1 to Import Drag Racing to Pro Mod.

• Maximum engine RPM – 10,500
• Supply voltage = 13.8 DC (negative ground only)
• Operating voltage = + 5 to +15V (restrictions apply)
• Ignition coil voltage = 480V
• Outputs are short circuit protected
• Reverse polarity load dump protected
• Spark energy = 115mJ
• 12V tacho output
• LED indicator for power/trigger
• -40°C to +105°C operating range
• Dimensions W=110mm,H=40mm, L=150mm
• Weight = 870 grams
• Maximum current draw = 7A
• 4 coil output channels
