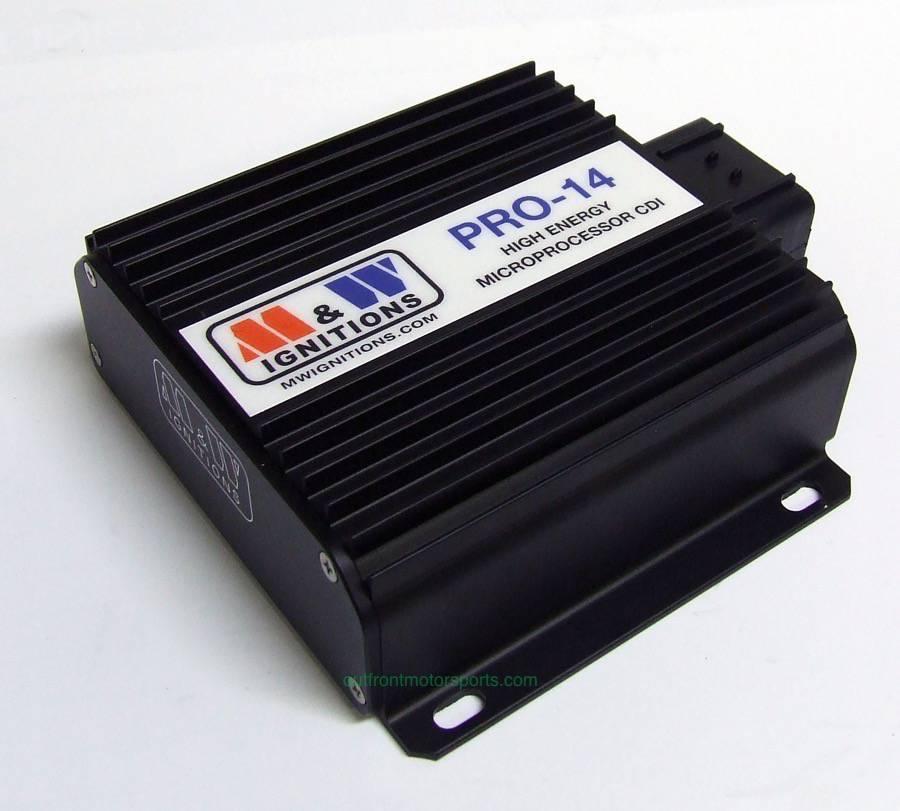

M&W Pro-14 CDI Ignition Box

M&W produces the finest quality CDI units on the market. With application ranging from Formula 1 to Import Drag Racing to Pro Mod.

• Maximum engine RPM - 21,000 (4 cyl direct fire)
• Supply voltage = 13.8 DC (negative ground only)
• Operating voltage = + 6 to +18V (restrictions apply)
• Ignition coil voltage = 480V (direct fire), 550V (paired trigger)
• Outputs are short circuit protected
•
• Supply has reverse polarity protection (external fuse required) and is load dump tolerant
• Spark energy = 115/150mJ (direct fire/paired trigger)
• 12V tacho output
• LED indicator for power/trigger diagnostics
• -40°C to +105°C operating range
• Dimensions W=110mm,H=40mm, L=110mm
• Weight = 685 grams
• Maximum current draw = 7A
• 4 coil output channels/li>
