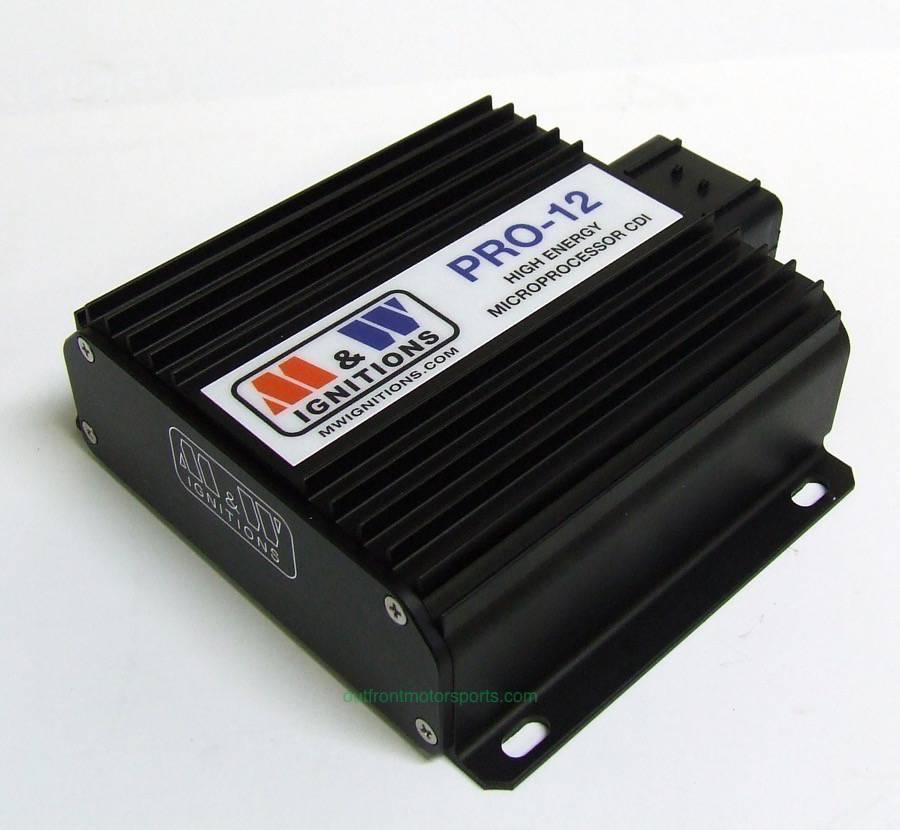

M&W Pro-12 CDI Ignition Box

M&W produces the finest quality CDI units on the market. With application ranging from Formula 1 to Import Drag Racing to Pro Mod.

• Maximum ignition frequency = 600/350Hz
• Supply voltage = 13.8 DC (negative ground only)
• Operating voltage = + 5 to +15V (restrictions apply)
• Ignition coil voltage = 480V
• Output is short circuit protected
• Reverse polarity load dump protected
• Spark energy = 115/170mJ (normal/high power modes)
• 12V tacho output
• LED indicator power/trigger
• -40°C to +105°C
• Dimensions W=110mm, H=40mm, L=140mm
• Weight = 685 grams
• Maximum current draw = 7A
• Dual coil output channels
