LINK MXG Strada 7" Dash - Street Edition

LINK MXG Strada 7" Dash - Street Edition

SKU: LINK-100-0172
Regular price $1,759.00
Regular price Sale price $1,759.00
Sale Sold out

Link MXG Strada 7” dash, powered by AIM.

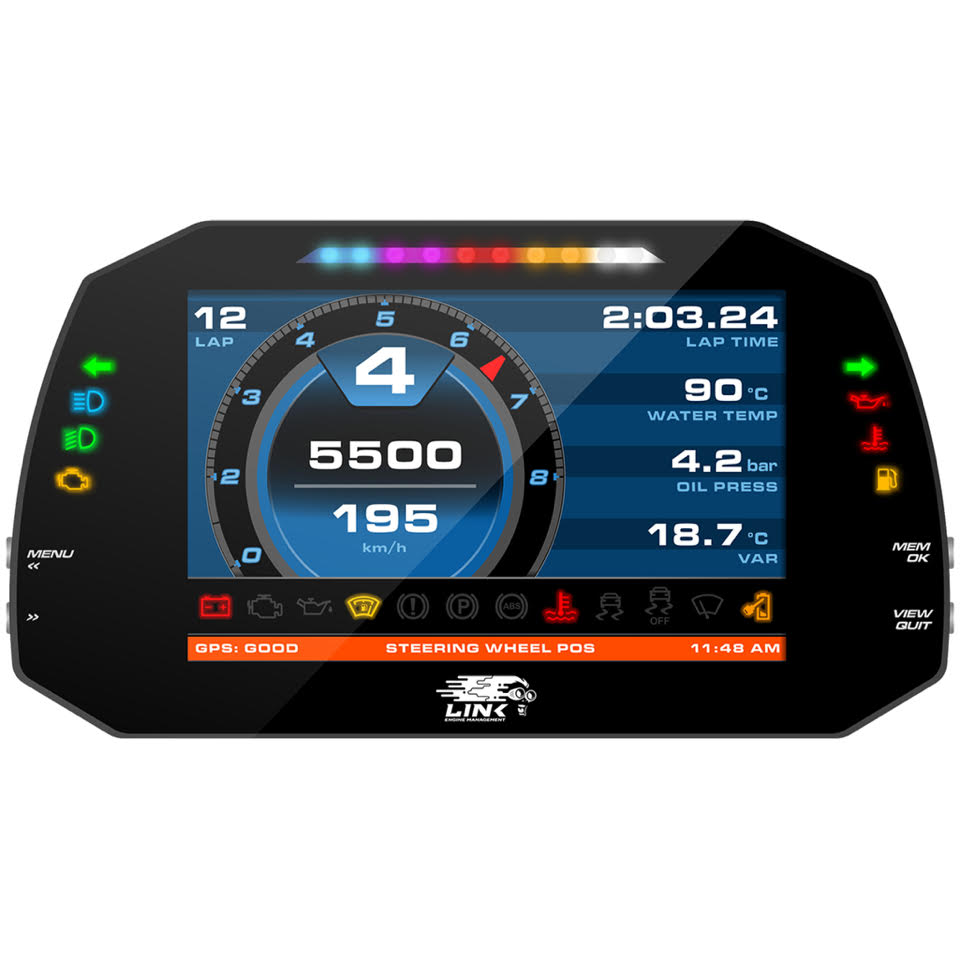

  • The Link MXG Strada Street edition is a full colour, 7-inch dash display legal for road use featuring 10 RGB shift lights and street icons down the side of the dash. It is pre-configured to work with all Link G4+/G4X Wire-In and Plug-in ECU's. See features tab for more information.
  • This listing is for the 'Street edition', please see the 'Race edition' if you are looking for a dash for motorsport purposes. This dash is also available in a 5” version.
  • The Link MXG Strada Street Edition dash features customisable shift lights, six street icons and a high contrast 7” TFT screen display. Visual quality is always optimal as the ambient light sensor auto-adjusts the brightness of the display.
  • The 10 multi-coloured RGB shift lights on the MXS Strada can be customised to your liking to define the RPM threshold for each single gear. There are also 8 Street Icons located to the side of the screen. These include an indicator lights, headlight, high beam, check engine, oil pressure warning light, temperature warning light and fuel light.
  • The dash is extremely easy to use, with buttons on the side to navigate through a library of preset display styles, depending on what information you want to see and in what layout. The screen can display all real-time information reading from the ECU such as RPM, speed, water temperature, oil pressure and much more.
  • The Link MXG connects directly to your Link ECU via the pin kit and wiring provided in the box.
  • To use with plugin ECU’s - CANPCB and CANF connectors will be required (Purchased separately).
  • The dash can be personalised via Link ECU PC Link and Aim Technologies Race Studio 3 software.

Included in the Box:

  • Link MXG 1.2 Strada
  • USB cable
  • 14 pin standard wiring
  • 23 pin connector + contacts
  • GPS module available separately.
  • Power consumption: 400 mA
  • Dash Dimensions: 237×127.6×26 mm
  • Weight: 950 g
  • Waterproof: IP65
