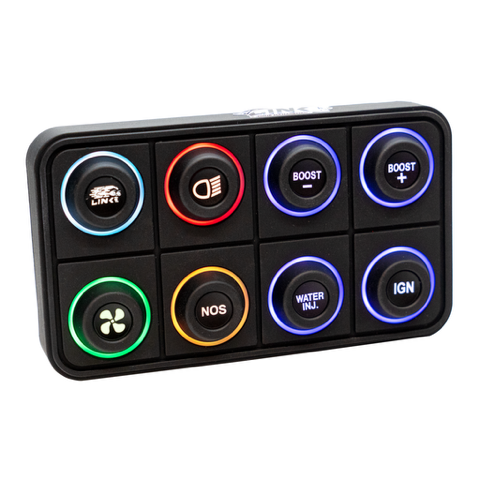

Link Engine Management Link CAN Keypad 8 Button

Rugged 8 key CAN Keypad with interchangeable 15mm inserts (sold separately).

Custom button inserts and configurable RGB indicator rings per button allow for extremely flexible set-ups.

The keypad is designed for ultimate reliability - IP67/IP69K water and dust resistant, -40 to +70 operating temperature range, UV 400hrs, salt spray resistant and switches rated to 3 million operations.

Can be installed both inside and outside, perfect for street, track and off-road use.

Note: Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose.

Features:

• CAN Configurable with G4X PC Link – Change LED backlight, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle.
• Customizable Button Inserts – The replacement system for individual inserts makes modifying the keypad layout simple and economical.
• IP67/IP69K Waterproof rating – Guaranteed to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour. The IP69K rating provides protection against high pressure water at high temperature spray downs.
• Compatible with all G4X ECU’s. Built-in support from G4X PC Link vers 6.22 onwards

Box Contents:

• 1 x 8 Button CAN Keypad
• 1 x DTM4 Mating Connector Kit
• 1 x Link Sticker
• 1 x Keypad Button Insert – Link Logo

Specifications:

• Connector - DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low)
• Switch Life - 3 million operations
• CANopen Node ID – 0x15 (21)
• Default Baud Rate - 1000kbit/s
• Ingress protection Rating – IP67/IP69K
• Chemical Resistance - Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid
• UV Protection - UVB 400 hours
• Salt Spray Per - ASTMB117
• Dimensions – 123.5mm (W) x 70mm (H)

Mounting Specs:

• Mounting Stud Gap (Centre to Centre) 78mm
• Nuts thread: #10-32
• Maximum torque: 0.8Nm
