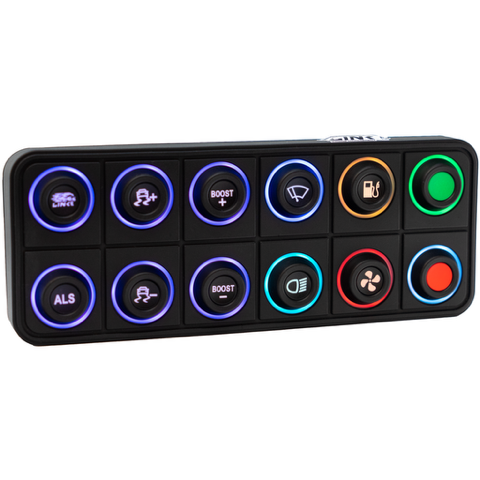

Link Engine Management Link CAN Keypad 12 Button

Link Engine Management Link CAN Keypad 12 Button

SKU: LINK-101-0239
No reviews
Regular price $389.00
Regular price Sale price $389.00
Sale Sold out

Rugged 12 key CAN Keypad with interchangeable 15mm inserts (sold separately).

Custom button inserts and configurable RGB indicator rings per button allow for extremely flexible set-ups.

The keypad is designed for ultimate reliability - IP67/IP69K water and dust resistant, -40 to +70 operating temperature range, UV 400hrs, salt spray resistant and switches rated to 3 million operations.

Can be installed both inside and outside, perfect for street, track and off-road use.

Note: Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose.

Features:

  • CAN Configurable with G4X PC Link – Change LED backlight, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle.
  • Customizable Button Inserts – The replacement system for individual inserts makes modifying the keypad layout simple and economical.
  • IP67/IP69K Waterproof rating – Guaranteed to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour. The IP69K rating provides protection against high pressure water at high temperature spray downs.
  • Compatible with all G4X ECU’s. Built-in support from G4X PC Link vers 6.22 onwards

Box Contents:

  • 1 x 12 Button CAN Keypad
  • 1 x DTM4 Mating Connector Kit
  • 1 x Link Sticker
  • 1 x Keypad Button Insert – Link Logo

Specifications:

  • Connector - DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low)
  • Switch Life - 3 million operations
  • CANopen Node ID – 0x15 (21)
  • Default Baud Rate - 1000kbit/s
  • Ingress protection Rating – IP67/IP69K
  • Chemical Resistance - Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid
  • UV Protection - UVB 400 hours
  • Salt Spray Per - ASTMB117
  • Dimensions – 181.5mm (W) x 70mm (H)



Mounting Specs:

  • Mounting Stud Gap (Centre to Centre) 136.14mm
  • Nuts thread: #10-32
  • Maximum torque: 0.8Nm
