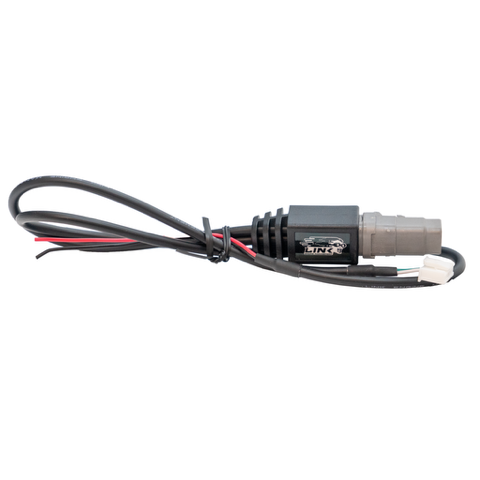

Link Engine Management CAN Connection Cable for Plugin ECU's (5pin) (CANJST)

Used to add CAN communications to G4+/G4X Plugin ECU’s which have a 5 Pin CAN connector.  Plugs directly into the CAN socket on the ECU PCB. 12V and Ground via flying lead. Terminates to a DTM4 Male Connector which is compatible with other Link CAN accessories including the CAN Extension cable (CANEXT) and CAN Splitter Cable (CANTEE)

Not compatible with the below PlugIns (these require a CANJST4 Cable):

• 233-4000 - PlugIn ECU G4X Honda S2000 AP1
• 228-4000 - PlugIn ECU G4X Subaru WRX V5-6
• 237-4000 - PlugIn ECU G4X Honda HC20X Type-R DC5/RSX
• 238-4000 - Plugin ECU G4X Subaru WRX11
• 239-4000 - Plugin ECU G4X MX5NB2X
• 240-4000 - Plugin ECU G4X MX5NB1X

Specs

DTM4 Male to JST4. 12V and GND Terminated to JST5. Length 300mm

DTM4 Pin Out

Pin 4: CAN H

Pin 3: CAN L

Pin 2: Ground

Pin 1: 12V
