Link Engine Management 5 BAR Map Sensor (MAP5EU)

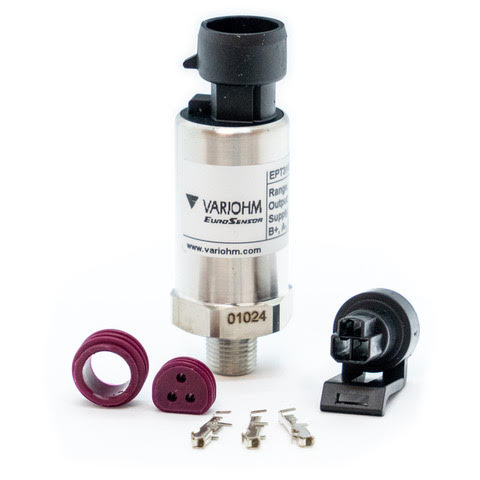

The 5 Bar MAP Variohm Eurosensor reads up to 4 Bar absolute pressure.

This means that it is suitable for turbo or supercharged applications running up to 4 Bar (or 58psi) of boost pressure.

Includes Plug and Pins

Push wire through connector; crimp on terminal; pull wire/terminal back into connector

Using Link G4/G4+/G4X ECU’s select the MAP sensor type in PC Link as ‘Variohm 5 Bar’

Calibration - 0kpa = 0.5v, 500kpa = 4.5v

PIN A = 0v

PIN B = 5v

PIN C = Signal
