GSC Stage 2 EJ255-EJ257 Billet Camshaft Set (Intake AVCS)

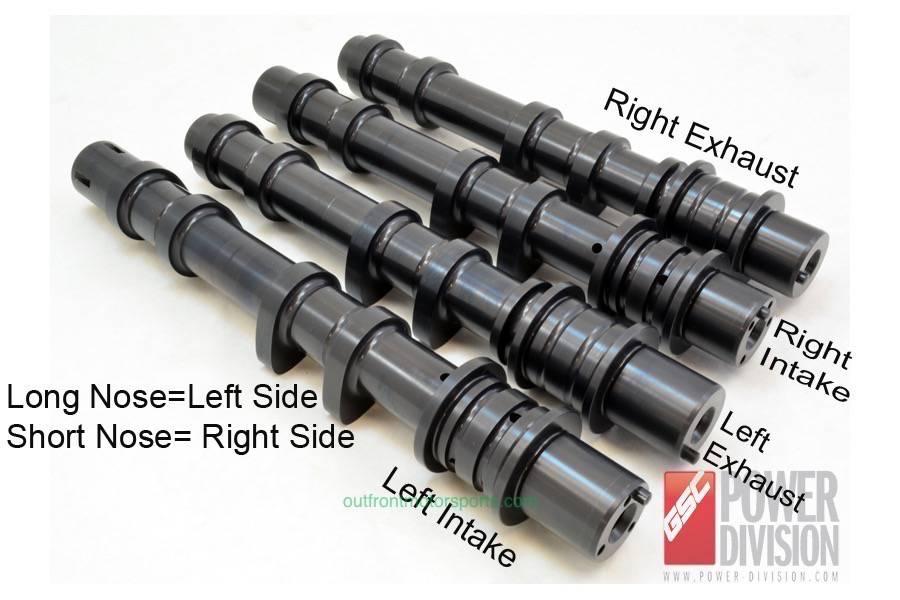

*Check Pictures for cam placement. Long nose= Left Side, short nose - Right Side

**Due to the lobe size, head castings may need to be filled down slightly for clearance. Please check during install.

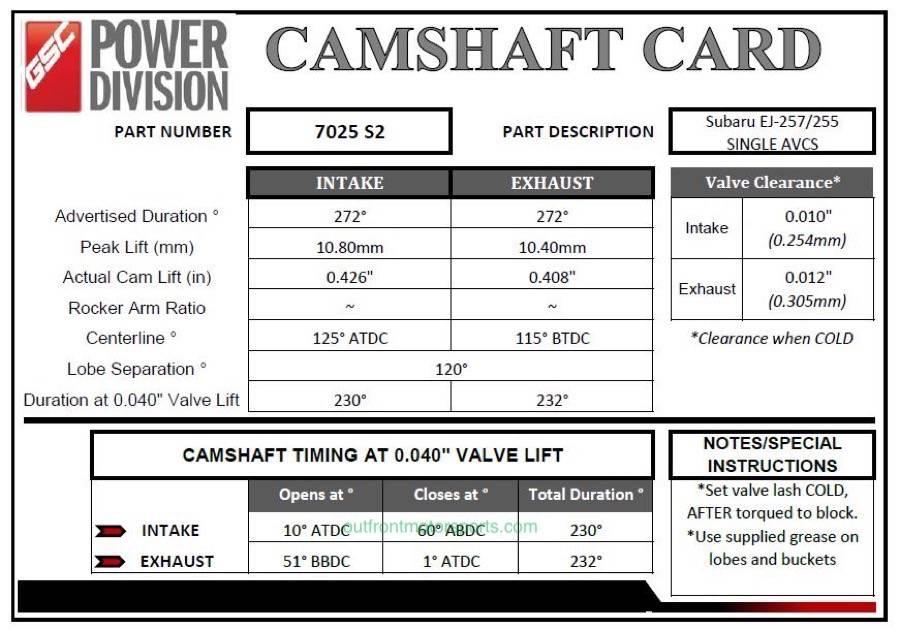

Intake 272 / 230 @ .040" / Peak Lift 10.8mm
Exhaust 272 / 232 @ .040" / Peak Lift 10.4mm

*Proper break in and running high zinc oil is a must on flat tappet engines. Must be installed by an experienced technician*
*Requires upgraded valve springs*
