GSC Stage 1 EJ255-EJ257 Billet Camshaft Set (Intake AVCS)

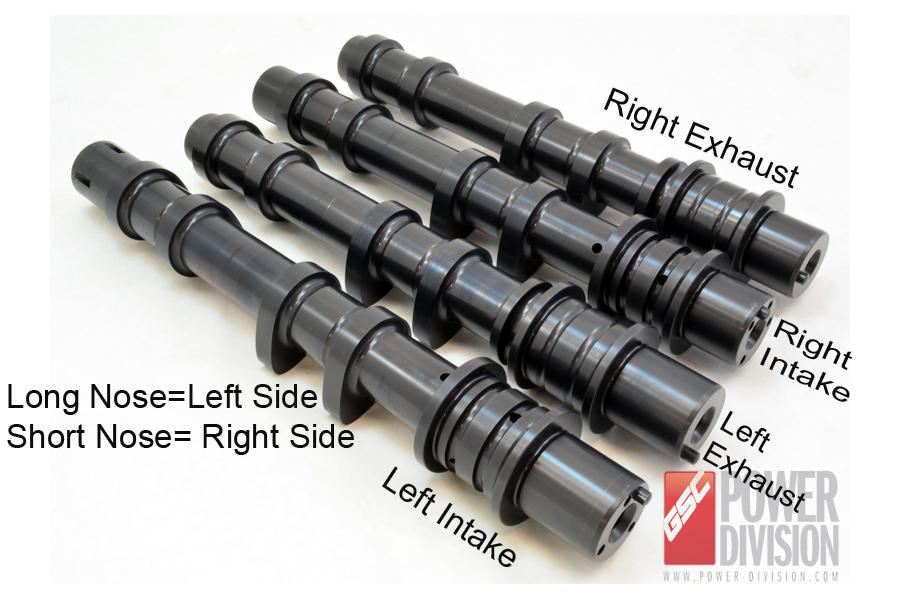

*Check Pictures for cam placement. Long nose= Left Side, short nose - Right Side

**Due to the lobe size, head castings may need to be filled down slightly for clearance. Please check during install.

Intake 268 / 225 @ .040" / Peak Lift 10.8mm / Centerline AVCS
Exhaust 266 / 225 @ .040" / Peak Lift 10.4mm / Centerline 113

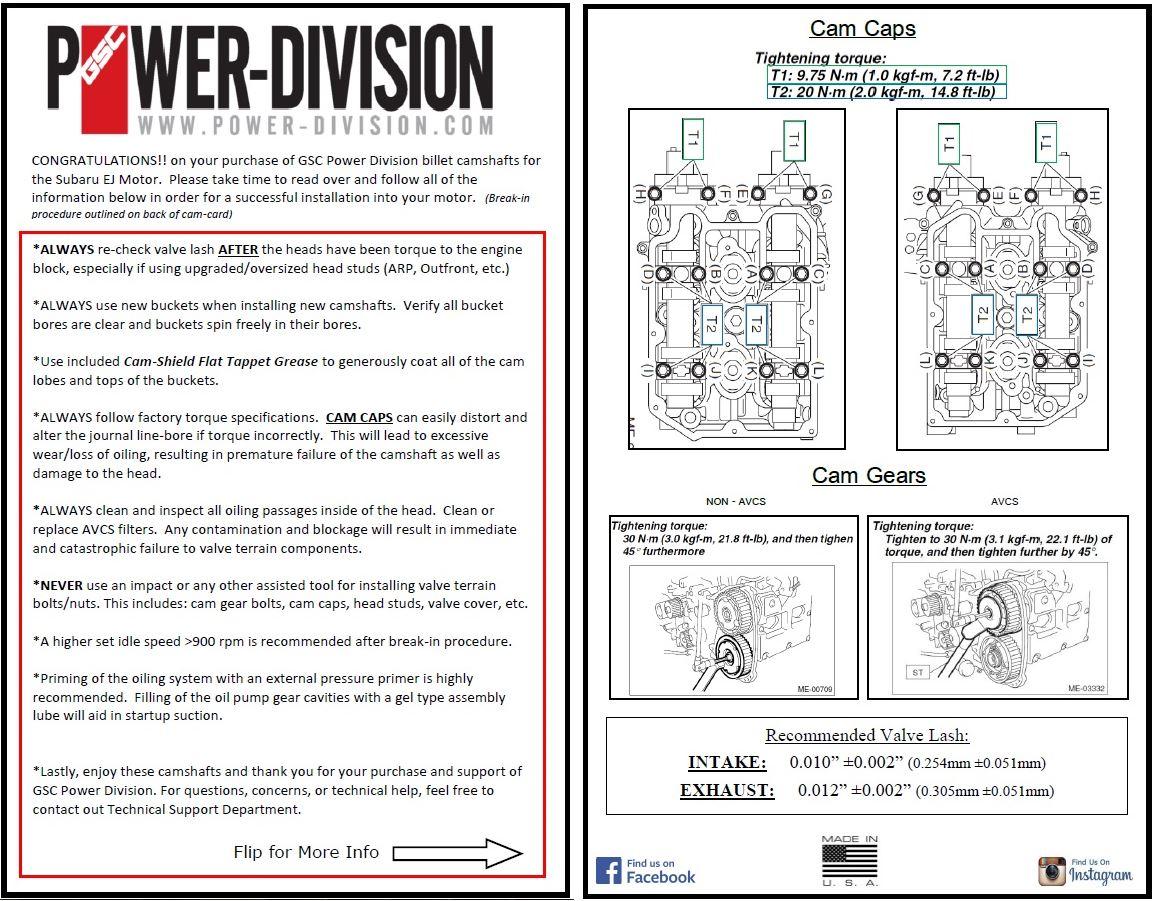

*Proper break in and running high zinc oil is a must on flat tappet engines. Must be installed by an experienced technician*
*Requires upgraded valve springs*
