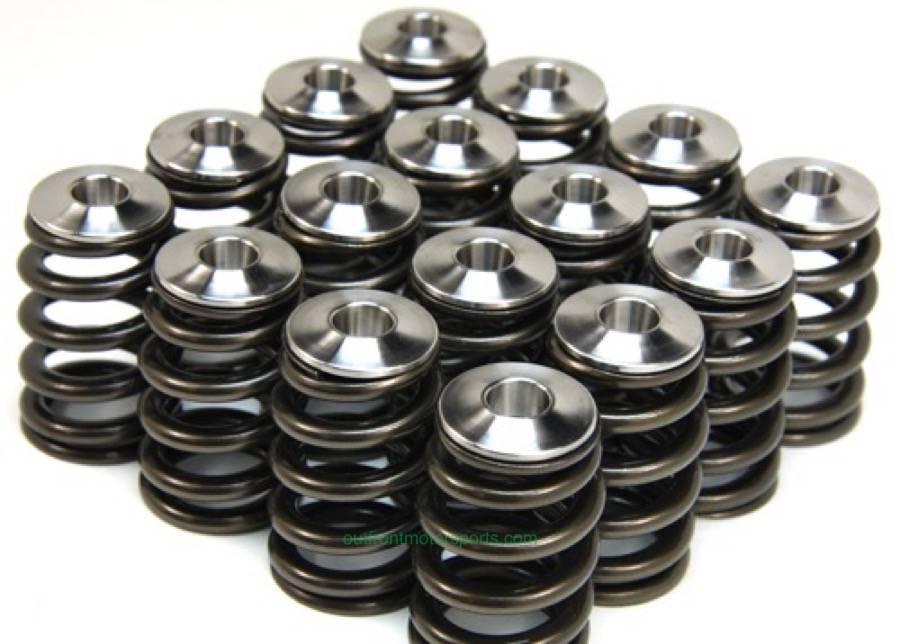

GSC EJ Beehive Valve Springs w- Titanium Retainer Kit

GSC EJ Beehive Valve Springs w- Titanium Retainer Kit

SKU: GSC-5043
Regular price $399.92
Regular price Sale price $399.92
Sale Sold out

The beehive valve spring shape has become the buzz lately. Some have inquired as to the benefits of a beehive spring vs the dual springs that are sold by others. While some might find that the beehive spring design is new it has been used commonly in many OE engines as well as in all of the NASCAR and F1 engines of today. Why? The beehive shape is more stable than standard single or dual cylindrical springs. The beehive design which incorporates an ovate wire is more than capable of the performance demands that were previously only matched by a Dual Springs. The smaller and lighter retainer used on the beehive valve spring allow for higher RPM and more valve control. So beehive valve springs, with their lighter weight retainers allow for engines to rev quicker and maintain a more stable valve motion than the traditional cylindrical springs of yesteryear.

Beehive Spring Benefits:
  • Rev faster
  • Lighter components
  • More durable design
  • Less stress on valvetrain components
  • Lower spring frequency for more precise valve control.
  • More valve control equals more aggressive cam profiles
  • Nano peened for faster break-in and less stressed springs
  • All of these items help to return more power for you to enjoy!

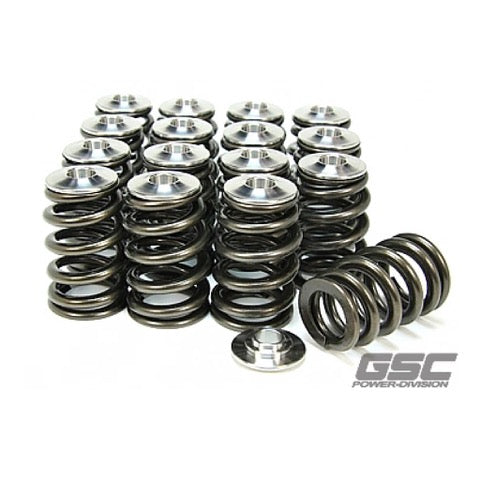

The GSC 5043 Beehive valve spring set, and Grade 5 Titanium retainers. This kit is capable of 9500+ RPMS, with as much as 11.5mm lift cams.

 5043 Beehive spring pressure:
  • Seat Pressure: 81 lbs @ 1.363" (36.6 mm) Install Height
  • Open Pressure 230lbs @ .910" (11.5 mm lift)
  • Coil bind @ .825" (21 mm)
  • Maximum Valve Lift .478” (12.14mm)
5043 Beehive Rev and Boost range (using an S3 profile camshaft set)
  • Max RPM: 9,500
  • Max boost: 35psi+
